Spindles

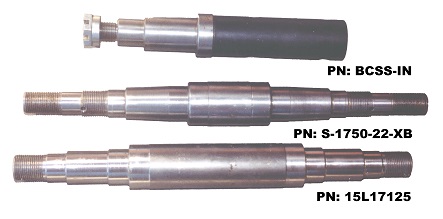

Ground Support Products spindles are made with 1 3/4" stock for added strength. Our spindles fit Clyde, FAST(WASP), and other GSE equipment.
| Part Number | Description | Length | Diameter |
| 15L17125 | Clude Spindle and FAST Front Double End Spindle, Used on Dollies | 15.62" | 1.75" |
| 15L17125-X | Double End Spindle with Adapting Plate | 15.62" | 1.75" |
| S-1750-22X | FAST Rear Double End Spindle, Used on Dollies | 16.13" | 1.75" |
| BCSS-IN | Single End Short Spindle Used on Dollies, Bag Carts, GSE Carts | 10.15" | 1.62" |
| LDS3926-L | Clyde LD3 Dual Spindle, Left Arm, Fits 4-1050-0-05 hub | OL 8.7" w/ 5" machined; OL 7.4" w/ 4.25" machined |
1.75" tapered to 1" |
| LDS3926-R | Clyde LD3 Dual Spindle, Right Arm, Fits 4-1050-0-05 hub | OL 8.7" w/ 5" machined; OL 7.4" w/ 4.25" machined |
1.75" tapered to 1" |
| V-866 | Vertical Spindle with a 37.5 degree angle fromthe spindle to the weldment; for use on dollies | OL 11.75"; machined 5.75" | OD 2.75"; tapered 2" - 1.75" |
| V866-01 | Straight Vertical Spindle, used with 5th wheel hub assembly; for use on dollies, bag carts, other carts | 11.75" | 2.75" |
Both the Straight Vertical Spindle and the Vertical Spindle are used in conjunction with the 5th wheel hub assembly. Our Vertical Spindle is made with a 37.5 degree angle from the spindle to the weldment.
 |
 |
| STRAIGHT VERTICAL SPINDLE PN: V-866-01 |
VERTICAL SPINDLE PN: V-866 |
