Front Swivel Caster

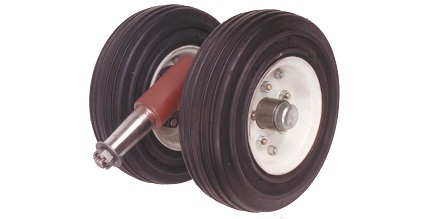

The Front Swivel Caster Assembly is used as the front
running gear on cargo dollies. The three main elements in the Front
Swivel Caster Assembly are the double end unit, tire/wheel assembly,
and vertical spindle. The vertical spindle is used in conjunction
with the fifth wheel hub assembly.
| Part Number | Description | Quantity |
| GS-999 | Front Swivel Caster | 1 |
| COMPONENT PARTS | ||
| 4837-25-AB | Tire and Wheel Assembly | 2 |
| V-866 | Verticle Spindle | 1 |
| 4-1050-02-04-XP | Double End Unit | 1 |
| 15L17125-X | Double End Spindle Only, With Welded Adapting Plate |
1 |
| 4-1050-02-05 | Hub Only | 1 |
 |
 |
| VERTICAL SPINDLE PN: V-866 GSP's vertical spindle is made with a 37.5 degree angle from spindle to the weldment. It is attached to the dolly by way of the fifth wheel hub assembly. |
FIFTH WHEEL HUB ASSEMBLY |
